Connecticut Loader Parts - A popular type of industrial equipment used in a variety of applications is the loader. They specialize in moving and loading materials including snow, raw minerals, asphalt, gravel, demolition debris, rock, woodchips, sand, snow, dirt, grain, feed and the like. These machines facilitate a variety of transportation such as moving items into feed-hoppers, rail cars, conveyor belts and dump trucks. Many different loader models are on the market including shovel, front-end loader, wheel-loader, skid-steer, bucket loader, scoop, front loader and skip loader.
Description
This machine is part of the tractor family features a wide bucket attached to the front of the machine that is connected to the endo of two booms or arms. Some models have wheels and others rely on tracks. This versatile piece of industrial equipment can scoop up items such as sand, gravel or dirt and transport it to another place without having to push it across the ground. Loaders move stockpiled items from ground level and transfer it to a dump truck or open trench. The loader assembly may consist of a permanently mounted or removable attachment options. The bucket can be interchanged with other tools. Fork attachments can be mounted to lift shipping containers or pallets. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. Various devices including a bale grappler can take care of large bales of straw or hay.
A front bucket is typically part of large loaders and they are commonly called front loaders. Smaller loader tractors can be outfitted with a tiny backhoe and are called JCBs, loader backhoes or backhoe loaders. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as other models such as an excavator or a backhoe due to its’ inefficiency of being unable to dig past its’ wheel level. Loader bucket capacity is in the range of 0.5 cubic meters to thirty-six cubic meters. Front loader bucket capacity is greater in comparison to a backhoe loader.
The majority of loaders feature wheels and not tracks; however, track models are common. Track models are popular in construction sites and areas where rubber wheels may be prone to damage from sharp items. Tracks feature more traction compared to wheels but wheels showcase better mobility and speed while offering less damage to paved areas. In construction zones, loaders are responsible for moving materials and tools for digging around the site.
Front loaders are popular for snow removal from sidewalks, narrow locations, parking lots and other areas that cannot accommodate larger machines. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
Specialized “high-tip” buckets are used to transport lightweight items including woodchips, pea gravel and peat, ensuring easier emptying while the bucket is extended and full height. Front loaders have gained popularity over the last 20 years within earthmoving and urban engineering applications. A variety of loader sizes are on the market to handle numerous jobs.
There are not automotive steering features on large loaders compared to standard tractors with backhoes or a front bucket. These loaders steer by way of a hydraulically actuated pivot point that is situated between the rear and front axles, known as articulated steering. This model allows most of the weight to be carried by the machine thanks to the solid front axle. There is more maneuverability offered with articulated steering models. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. After the machine is turned to the side and the heavy load is raised, there is more risk of turning over towards the wide side.
Major Components

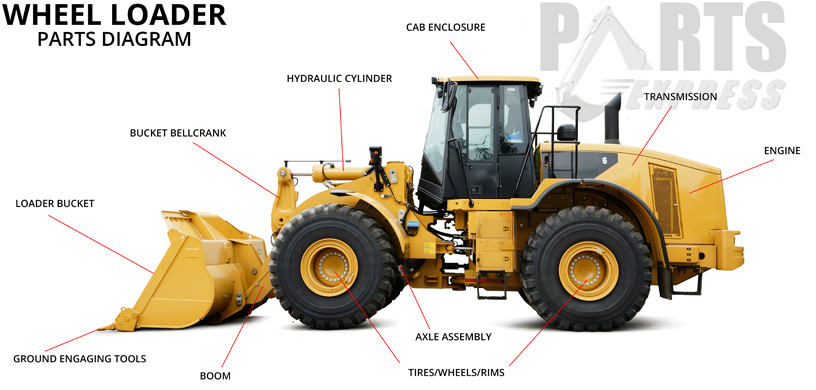

Major items include:
• Engine (usually diesel)
• Transmission components (axles, gearbox, tracks or wheels, motors, pumps, etc.,
• Hydraulic components (valves, motors, pumps)
The engine is responsible for controlling the hydraulics and the transmission which enables the front attachments such as the bucket, forks, sweeper etc. to move. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The initial wheel loader was created from a tractor with a rear-wheel drive. New wheel loaders have the same front and rear wheel dimensions with articulation.
Armored Wheel Loaders
Many military jobs use an armored Caterpillar 966 wheel loader to handle construction jobs and combat engineering tactics. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. Armor plating is added to protect the machine against gunfire, Molotov cocktails, stones and rocks. Wheel loaders have been used by certain police squads to complete military jobs such as opening up transportation routes. Remote controlled wheel loaders are used by some police and military departments.
Tractor Front Loaders
Tractors with 50 to 200 horsepower may use a loader addition. Tractor loaders have been manufactured to complete many farming activities. These tractor loaders can complete a variety of jobs and are more economical than telehandler equipment. Hydraulic grabs and spikes are some of the common attachments to increase efficiency with bale handling and silage. Pallet applications rely on fork attachments and buckets are commonly used for agricultural jobs.
Compact Front End Loaders
FELs or front-end loaders are popular additions to farm tractors and compact utility tractors or CUTs. Landscaping and groundskeeping applications utilize smaller and more compact models with 18 to 50 HP. There are curved arm models, semi-curved and the traditional dogleg model design.
CUT size tractors featuring front-end loaders can complete numerous jobs, especially when outfitted with special attachments. To facilitate better digging capacity, a tooth bar may be added to the front edge of the machine. A QA or quick attach system or quick coupler enables buckets and attachments including pallet forks and bale spears to be easily removed and attached.
The LHD or load-haul-dump machine is a front end loader that is useful in compact mining conditions. It can use numerous buckets and operate with diesel engines or electric motors.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. This unit features lift arms enabling it to easily attach to numerous tools. These machines are generally a four-wheeled vehicle that mechanically synchronizes on each side. Each set of right and left wheels are capable of being driven independently. Typically, the wheels hold a straight, fixed alignment on the body and have no separate steering mechanism.
Differential steering is responsible for conducting turning maneuvers. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. Torsional forces due to the dragging motion are prevented thanks to the strong wheels and rigid frame. High ground friction created by skid steers and tracked vehicles can destroy fragile or soft road surfaces.
Low ground friction is converted by specially designed wheels. There are specific skid-steer units that can conduct zero-radius turns and pirouette turning to facilitate maximum maneuverability. These functions are desirable for jobs requiring a loader that is compact and agile. There are some varieties called multi-terrain loaders that utilize tracks as opposed to wheels.
The lift arms in skid loaders are situated alongside the operator with pivot points located behind the driver’s shoulders. Due to the operators’ close proximity to moving booms, earlier models were not as safe as conventional front loaders, specifically while entering and exiting the equipment. Modern models nowadays feature enclosed cabs and extra features to ensure operator safety. Similar to other front loaders, it can transport material from one location to the next via carrying material in the bucket to deposit into a trailer or truck or pushing it across the ground.
History of Tracked Loaders
Tracked loaders are complete with a chassis for loading items and digging materials with a loader Three notable design evolutions have made this machine more efficient and versatile. This equipment can complete a variety of tasks, making it a useful addition to many fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Most often, tracked loaders were used for moving stockpiled items into loading trucks and rail cars.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. The initial designs placed the engine weight at the front area of the tracks other heavy loader items. This situation placed too much wear and tear on the front idler wheels and the undercarriage. The hydrostatic drive system became the second major design innovation to improve tracked loaders.
Swingloaders
A swingloader consists of a rigid frame and swinging boom. The boom is capable of travelling 180 degrees or more. The boom can travel up to 180 degrees or farther, depending on the model. These items are used mostly for laying rail within the railroad industry. There are many different attachments such as magnets, buckets and forks that can be used. Agricultural applications rely on smaller machines. Swingloaders are popular in a variety of places where space is limited. These machines are commonly used in applications where space is compromised. Capable of lifting and depositing on all sides, this loader is popular for many different jobs.
