Bulldozers Parts Connecticut - Dozers are similar to a tractor that is outfitted with a dozer blade. They are most often crawler tractors - that is, they operate on a continuous track, rather than wheels - although they can be wheeled tractors. The dozer blade attaches to the front of the bulldozer to push materials easily and efficiently. The dozer blade is used to push large volumes of material, such gravel or dirt, during construction and alteration projects. The back of the bulldozer is usually fitted with large, metal teeth, called the ripper, useful in breaking up hard, compressed material.
Specifics
A typical bulldozer utilizes tracks that provide excellent maneuvering options and stellar traction on unstable, uneven or rough ground with a unique transmission that enables the dozer to operate with more tractive force. The track width evenly distributes the weight in unstable applications to prevent the industrial machine from sinking. Tracks are also available in increased widths, known as swamp tracks. Dozers are popular within mining applications, land clearing and construction jobs that need strong and stable equipment to transport materials within a variety of environments.
Bulldozers operating on a wheeled system usually have four wheels, moved along by a 4-wheel-drive system and a hydraulic, articulated steering system. The dozer blade is mounted in front of the articulation joint and is operated on a hydraulic system, rather than mechanical.

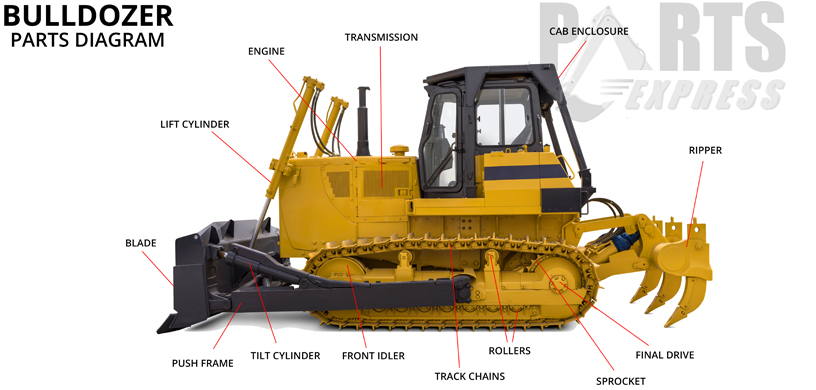

The bulldozer is easily recognized from other types of industrial equipment thanks to its main components, the ripper and the dozer blade.
The Dozer Blade
The bulldozer blade consists of a sizeable metal plate that is situated at the front of the machine. The purpose of the dozer blade is to push heavy items and awkward materials. Gravel, dirt, snow and rubbish are commonly pushed into new locations with bulldozers. Three typical kinds of dozer blade options are available including the semi-U blade, the universal blade and the straight blade.
The universal blade, or U blade is tall, curved and has large wings on the side used to carry extra material. The straight or S blade is much shorter than the U blade and has no wings on the side or lateral curve, making it ideal for earth grading jobs. The semi-U or SU blade features a shorter, slightly less curved blade with size wings that are smaller than those on the U blade. It is generally used for pushing boulders or large rock piles.
Dozer blades commonly attach horizontally or at an angle to the tractor. The angle of the dozer blade can be adjusted with tilt cylinders. Dozer blades can be sharpened to enable cutting items including tree stumps and roots. Angledozer blades are pushed forward on one side (hence the name) to clear materials away from the path of the machine. The angledozer is commonly used for snow removal on roads and highways.
A bull blade is a common bulldozer attachment. A bull blade is a reinforced centre section of the bulldozer. This allows a bulldozer to push a scraper, which is another large, heavy piece of equipment used to move earth.
Dozer blades are common attachments on a variety of military vehicles. Numerous military vehicles can attach a dozer blade for strategic operations including battle tanks, artillery tractors and combat engineering vehicles. Mounting a dozer blade on a battle tank enables it to push mines and obstacles out of the way or create combat positions by digging shelters. It also helps create a protective barrier against artillery and explosives.
The Dozer Ripper
The tool found at the back of the bulldozer with long teeth is the dozer ripper also called the shank. Dozer rippers are available in multiple or single shank options. The giant ripper design or large single shank is commonly used for large and compact applications. Multi-shank rippers refer to multi-shank designs.
The tip of the shank is a detachable, metal piece known as the boot. This enables the boot to be easily replaced when it becomes broken or worn down instead of having to completely change the shank.
Solid objects including compact earth, concrete or rock can be broken up into tinier pieces thanks to the dozer ripper, creating material that is easier to transport by the dozer. One machine that completes multiple tasks creates faster project completion on the job site.
The dozer ripper is used in farming to break up earth and rock for better plowing and planting. In some areas of Italy and New Zealand, for example, this is especially useful as the nutrient-rich, old lava flows would otherwise not be farmable given their denseness. The ripper loosens the top lava rock layer to initiate farming applications.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
The initial bulldozer design was too big to work in confined locations such as mines. These limitations led to more compact bulldozer designs and models. Very small, light bulldozers are sometimes referred to as calfdozers.
In snow areas, such as ski hills, a lighter version of the bulldozer is used for snow removal and preparing areas for winter sports.
More common bulldozer adaptations resulted in the loader tractor. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. This adapted bulldoze is now often referred to as a Drott, trackscavator or track loader and frequently used in loading rocks, gravel and earth into dump trucks.
A stump buster is one of the less common bulldozer attachments. This attaches to the rear of the bulldozer. It consists of a single spike that protrudes horizontally to split tree stumps up for easier removal. These are used primarily by bulldozers working on land clearing projects. In those circumstances, the bulldozer also has a brush-rake blade.
The original bulldozer design is used ground leveling, road carving, deforestation and earthmoving applications. Large bulldozers are commonly used in construction for leveling terrain. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
The initial bulldozer design was created when a draftsman, J. Earl McLeod teamed up with a farmer named James Cummings in 1923. Their design was actually what is now known as the dozer blade and was meant to be attached to an existing farm tractor, used to plow fields. They soon built the first bulldozer and their original prototype can be viewed in Morrowville, Kansas’ city park. The team filed for a US patent on their bulldozer attachment later that year and a patent was granted in January 1925. At the time, it was common for tractors to run on a track system. In fact, it was this earlier version of the tractor, with its superior maneuverability, that contributed to the creation of the armoured tank during World War I.
Custom made attachments became available on tracked and wheeled tractors alike by 1929. However, the popularity of the bulldozer attachment did not occur until the mid-1930s. Prior to 1940, hydraulic cylinders were added and by the ‘50s, bulldozer popularity began to grow with the term bulldozer referring to the whole machine.
With their growth in popularity for large and small construction jobs, bulldozers became larger and stronger. Numerous companies including Caterpillar and John Deer began making wheeled and tracked bulldozer lines. The manual transmission was replaced over time with automatic transmissions and electric motors and hydraulic cylinders eventually replaced cable winch systems. These technological upgrades created more effective and accurate control systems. These days, GPS technology geared toward bulldozing tasks has added to improved grade control.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
